Containerlab Service Inspect Task

task api name: inspect

The Containerlab service inspect task is designed to inspect the configuration and status of container lab containers. This task provides detailed information about running labs, including their topology, container details, and status.

Containerlab Inspect Task Overview

The inspect task provides the following features:

• Lab Inspection: Retrieves information about a specific lab or all labs.
• Detailed View: Optionally includes detailed information about the lab's containers.

Containerlab Inspect Task Sample Usage

Below is an example of how to use the Containerlab inspect task to inspect a lab.

Example

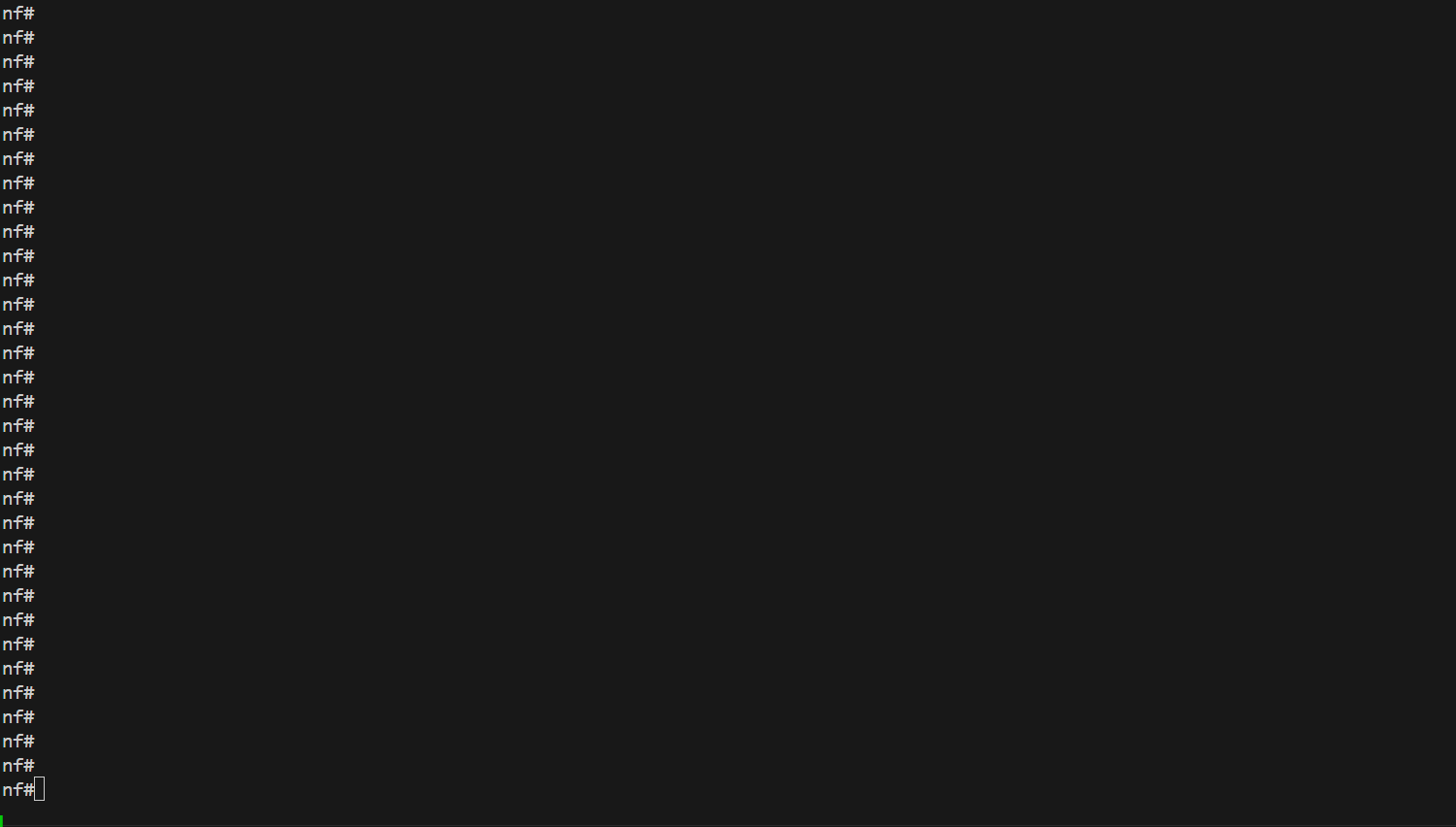

DemoCLICLI with DetailsPython

nf#show containerlab containers lab-name three-routers-lab
containerlab-worker-1:
    ----------
    containers:
        |_
          ----------
          lab_name:
              three-routers-lab
          labPath:
              __norfab__/files/worker/containerlab-worker-1/topologies/containerlab/three-routers-topology.yaml
          name:
              clab-three-routers-lab-r1
          container_id:
              4f7836a4d1ac
          image:
              ceosimage:4.30.0F
          kind:
              ceos
          state:
              running
          ipv4_address:
              172.100.101.12/24
          ipv6_address:
              N/A
          owner:
              norfabuser
        |_
          ----------
          lab_name:
              three-routers-lab
          labPath:
              __norfab__/files/worker/containerlab-worker-1/topologies/containerlab/three-routers-topology.yaml
          name:
              clab-three-routers-lab-r2
          container_id:
              6ea7120965b1
          image:
              ceosimage:4.30.0F
          kind:
              ceos
          state:
              running
          ipv4_address:
              172.100.101.13/24
          ipv6_address:
              N/A
          owner:
              norfabuser
        |_
          ----------
          lab_name:
              three-routers-lab
              __norfab__/files/worker/containerlab-worker-1/topologies/containerlab/three-routers-topology.yaml
          name:
              clab-three-routers-lab-r3
          container_id:
              63ee900fde76
          image:
              ceosimage:4.30.0F
          kind:
              ceos
          state:
              running
          ipv4_address:
              172.100.101.14/24
          ipv6_address:
              N/A
          owner:
              norfabuser
nf#

nf#show containerlab containers lab-name three-routers-lab details
containerlab-worker-1:
    |_
      ----------
      Names:
          - clab-three-routers-lab-r2
      ID:
          6ea7120965b142c397bab0c1a40550e00e967b8ae6031f7f66561f8decc0b45a
      ShortID:
          6ea7120965b1
      Image:
          ceosimage:4.30.0F
      State:
          running
      Status:
          Up 14 minutes
      Labels:
          ----------
          clab-mgmt-net-bridge:
              br-f71d180c51e5
          clab-node-group:
          clab-node-kind:
              ceos
          clab-node-lab-dir:
              /home/norfabuser/norfab/tests/nf_containerlab/__norfab__/files/worker/containerlab-worker-1/topologies/containerlab/clab-three-routers-lab/r2
          clab-node-longname:
              clab-three-routers-lab-r2
          clab-node-name:
              r2
          clab-node-type:
          clab-owner:
              norfabuser
          clab-topo-file:
              /home/norfabuser/norfab/tests/nf_containerlab/__norfab__/files/worker/containerlab-worker-1/topologies/containerlab/three-routers-topology.yaml
          containerlab:
              three-routers-lab
      Pid:
          7083
      NetworkSettings:
          ----------
          IPv4addr:
              172.100.101.13
          IPv4pLen:
              24
          IPv4Gw:
              172.100.101.1
          IPv6addr:
          IPv6pLen:
              0
          IPv6Gw:
      Mounts:
          |_
            ----------
            Source:
                /home/norfabuser/norfab/tests/nf_containerlab/__norfab__/files/worker/containerlab-worker-1/topologies/containerlab/clab-three-routers-lab/r2/flash
            Destination:
                /mnt/flash
      Ports:
          |_
            ----------
            host_ip:
                0.0.0.0
            host_port:
                12203
            port:
                22
            protocol:
                tcp
          |_
            ----------
            host_ip:
                ::
            host_port:
                12203
            port:
                22
            protocol:
                tcp
          |_
            ----------
            host_ip:
                0.0.0.0
            host_port:
                14403
            port:
                443
            protocol:
                tcp
          |_
            ----------
            host_ip:
                ::
            host_port:
                14403
            port:
                443
            protocol:
                tcp
          |_
            ----------
            host_ip:
                0.0.0.0
            host_port:
                18803
            port:
                80
            protocol:
                tcp
          |_
            ----------
            host_ip:
                ::
            host_port:
                18803
            port:
                80
            protocol:
                tcp
          |_
            ----------
            host_ip:
                0.0.0.0
            host_port:
                18303
            port:
                830
            protocol:
                tcp
          |_
            ----------
            host_ip:
                ::
            host_port:
                18303
            port:
                830
            protocol:
                tcp

<...omitted for brevity...>

import pprint

from norfab.core.nfapi import NorFab

if __name__ == '__main__':
    nf = NorFab(inventory="inventory.yaml")
    nf.start()

    client = nf.make_client()

    res = client.run_job(
        service="containerlab",
        task="inspect",
        kwargs={
            "lab_name": "three-routers-lab",
        }
    )

    pprint.pprint(res)

    nf.destroy()

NORFAB Containerlab CLI Shell Reference

Below are the commands supported by the inspect task:

nf#man tree show.containerlab.containers
root
└── show:    NorFab show commands
    └── containerlab:    Show Containerlab service
        └── containers:    show containerlab containers
            ├── timeout:    Job timeout
            ├── workers:    Filter worker to target, default 'all'
            ├── verbose-result:    Control output details, default 'False'
            ├── details:    Show container labs details
            └── lab-name:    Show container for given lab only
nf#

* - mandatory/required command argument

Python API Reference

Inspect the container lab containers configuration and status.

This method retrieves information about a specific container lab or all container labs, optionally including detailed information.

Parameters:

Name	Type	Description	Default
lab_name	str	The name of the container lab to inspect. If not provided, all container labs will be inspected.	None
timeout	int	The maximum time in seconds to wait for the inspection command to complete. Defaults to None.	None
details	bool	Whether to include detailed information in the inspection output. Defaults to False.	False

Returns:

Name	Type	Description
Result	Result	An object containing the result of the inspection task.

Source code in norfab\workers\containerlab_worker\containerlab_worker.py

@Task(
    input=InspectInput,
    output=InspectResult,
    fastapi={"methods": ["GET"]},
    mcp={
        "annotations": {
            "title": "Inspect Lab",
            "readOnlyHint": True,
            "destructiveHint": False,
            "idempotentHint": True,
            "openWorldHint": True,
        }
    },
)
def inspect(
    self,
    job: Job,
    lab_name: Union[None, str] = None,
    timeout: int = None,
    details: bool = False,
) -> Result:
    """
    Inspect the container lab containers configuration and status.

    This method retrieves information about a specific container lab or all
    container labs, optionally including detailed information.

    Args:
        lab_name (str, optional): The name of the container lab to inspect.
            If not provided, all container labs will be inspected.
        timeout (int, optional): The maximum time in seconds to wait for the
            inspection command to complete. Defaults to None.
        details (bool, optional): Whether to include detailed information in
            the inspection output. Defaults to False.

    Returns:
        Result: An object containing the result of the inspection task.
    """
    timeout = timeout or 600
    ret = Result(task=f"{self.name}:inspect")
    log.info(
        f"{self.name} - Inspect: Inspecting {'all labs' if lab_name is None else lab_name + ' lab'}"
    )
    if lab_name:
        job.event(f"inspecting lab '{lab_name}'")
    else:
        job.event("inspecting all labs")

    if lab_name:
        args = ["containerlab", "inspect", "-f", "json", "--name", lab_name]
    else:
        args = ["containerlab", "inspect", "-f", "json", "--all"]
    if details:
        args.append("--details")

    ret = self.run_containerlab_command(
        args=args, timeout=timeout, ret=ret, job=job
    )

    # check if lab name given and it is not in output
    if lab_name and lab_name not in ret.result:
        ret.failed = True
        msg = f"'{lab_name}' lab not found"
        ret.errors.append(msg)
        log.error(msg)

    return ret
